Valves
Valves

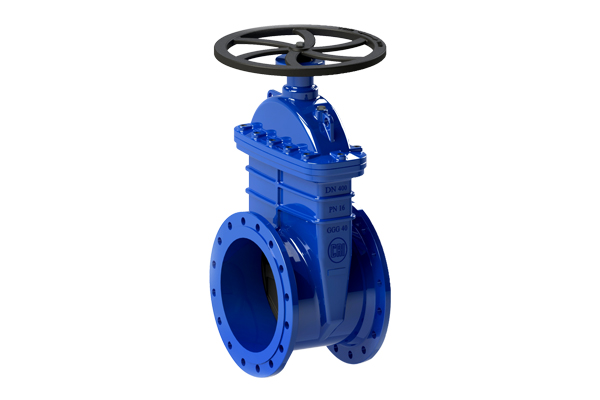

Resilient Seated Gate Valve
Resilient seat gate valves are gate valves with an elastomer lined wedge. They are specially used for wastewater, drinking water supply and irrigation.100 % leak proof Corrosion-resistant fusion bonded epoxy coated body and bonnet
| Size | DN50 to DN600 |
| Pressure Rating | PN 10 / PN 16 |
| Temperature | (Up to 70oC) |
| Operation | Hand Wheel / Gear Box / Electrical |
| Material of Construction | Ductile Iron |
| Design | BS 5163 , EN 1074 -1, EN 1074 -2, ISO 5752 |
| Face to Face | EN558 Series – 3 / ISO5752, ASME B 16.10 |
| Flange Standard Conformity | EN 1538 / EN 1092 – 2 |
| Testing | EN 12266 – 1, BS 6756 – 1 |
Applications
Ball Valve

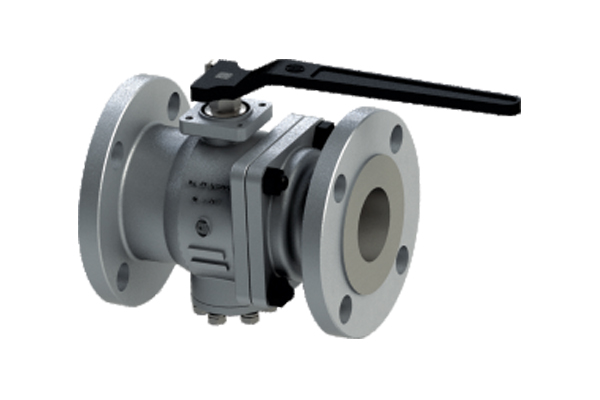

Two Piece Ball Valve
The C.R.I floating ball valve design sandwiches the ball between two or more cupped seats that form a tight seal between the body and the ball at the inlet and outlet ports of the valve body.
- Floating ball valves are precisely machined mirror finish solid Ball
- Inline replacement of stem packing
- Fire safe tested and certified by FCRI
- Pressure relief feature
- Blow out proof stem live load packing, Low emission seals
- Drain and stem sealant injection features are optional
- Anti-static design
| Size | DN15 to DN150 |
| Type | Floating type, Flanged ends |
| Rating | Class 150 |
| Basic Design | API 6D, ISO 17292 / ASME B 16.34 |
| Face to Face | ASME B 16.10, API 6D |
| Flange Standard Conformity | ASME B 16.5 |
| Test | API 598, API 6D, EN 12266 |
CI Valves
Foot valve
Resilient Seated Gate Valve
Foot Valve is placed at the lower end of the suction pipe of a centrifugal end suction pumpset to retain water in the pumpset casing and suction pipe to keep the pumpsets always in priming condition.
- Suction path is almost straight to the pipe and hence frictional loss is very less
- Natural rubber flap totally prevents water leakage
- Ruggedly built with graded cast iron
- Compact design and easy to install
- Metal parts of valves are coated with bituminous paint to avoid rust formation
- It increases water discharge upto 20% and reduces energy consumption upto 10%
| Material of construction | Cast iron |
| Type | Screw type, Flange tupe |
| Maximum operating head | 1 bar |
| Available nominal size in mm, Screw type | 40, 50, 65, 80, 100, 125, 150 mm |
| “K” Value | Less than 0.8 units |
| Maximum liquid temperature | 33°C |
NON RETURN VALVE
NON RETURN VALVE
Reflux and Non Return Valves are fitted generally in the delivery pipeline to avoid water hammer, up thrust and backspin effects In the pumping system. These can also be used anywhere in the suction line of which the bottom end is entered into a bore pipe Or tube well. The pressure withstanding capacity of Reflux Valve and Non Return Valve are 1 bar and 15 bar respectively.
- By-pass arrangements is provided
- Prevent water hammer, up thrust and back spin in the pumping systems
- Natural rubber flap totally prevents water leakage
- Ruggedly built with graded cast iron
- Compact design and easy to install
| Material of construction | Cast iron |
| Type | Standard & Heavy |
| Maximum operating pressure | 15 bar |
| Available nominal size in mm, Standard type | 50, 65, 80, 100 mm |
| Heavy Type | 50, 65, 80, 100 , 125, 150 mm |
| Maximum liquid temperature | 33°C |
check VALVE
check VALVE
Check Valves are used to prevent backflow. A check valve relies on a pressure differential to work. They require a higher pressure on the input side of the valve than the output side to open the valve.
- Prevent water hammer, up thrust and back spin in the pumping systems
- Natural rubber flap totally prevents water leakage
- Ruggedly built with graded cast iron
- Compact design and easy to install
- Metal parts of valves are coated with bituminous paint to avoid rust formation
- It increases water discharge upto 20% and reduces energy consumption upto 10%
| Material of construction | Cast iron |
| Type | Square type and Round type |
| Maximum operating head | 5 bar |
| Available nominal size ,Square type | 40 x 40, 50 x 50, 65 x 65, 80 x 80, 100 x 100, 125 x 125, 150 x 150 |
| Round type | 50 x 50, 65 x 50, 65 x 65, 80 x 65, 80 x 80, 100 x 80, 100 x 100 mm |
| “K” Value | Less than 0.5 units |
| Maximum liquid temperature | 33°C |
air VALVE
air VALVE
Air Valve is connected with delivery pipeline to eliminate the trapped air in the system. Normally in horizontal pipeline, due to un-evenness in ground level, there will be an entry of air into the pipeline. It results in pipe damages. Air valves are installed in pipelines.
- Metal parts of valves are coated with bituminous paint to avoid rust formation
- Double acting Air Valve in specific size
- Rubber ball is made up of natural rubber with wood for long life
| Material of construction | Cast iron |
| Type | Single acting & Double acting |
| Maximum operating pressure | 5 bar (Single acting) 15 bar (Double acting) |
| Available nominal size,Single acting Double acting | 12, 19, 25 mm 50 mm |
