Drip accessories

For Any Query Contact:

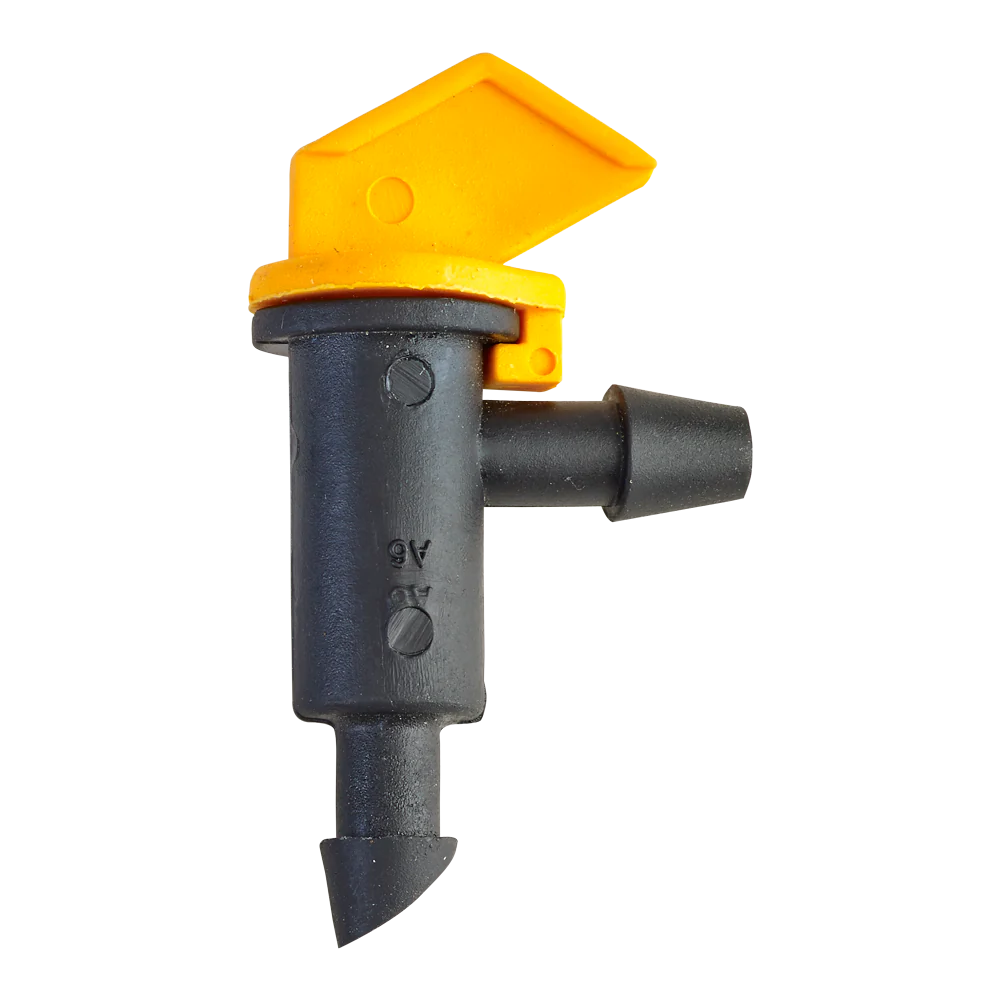

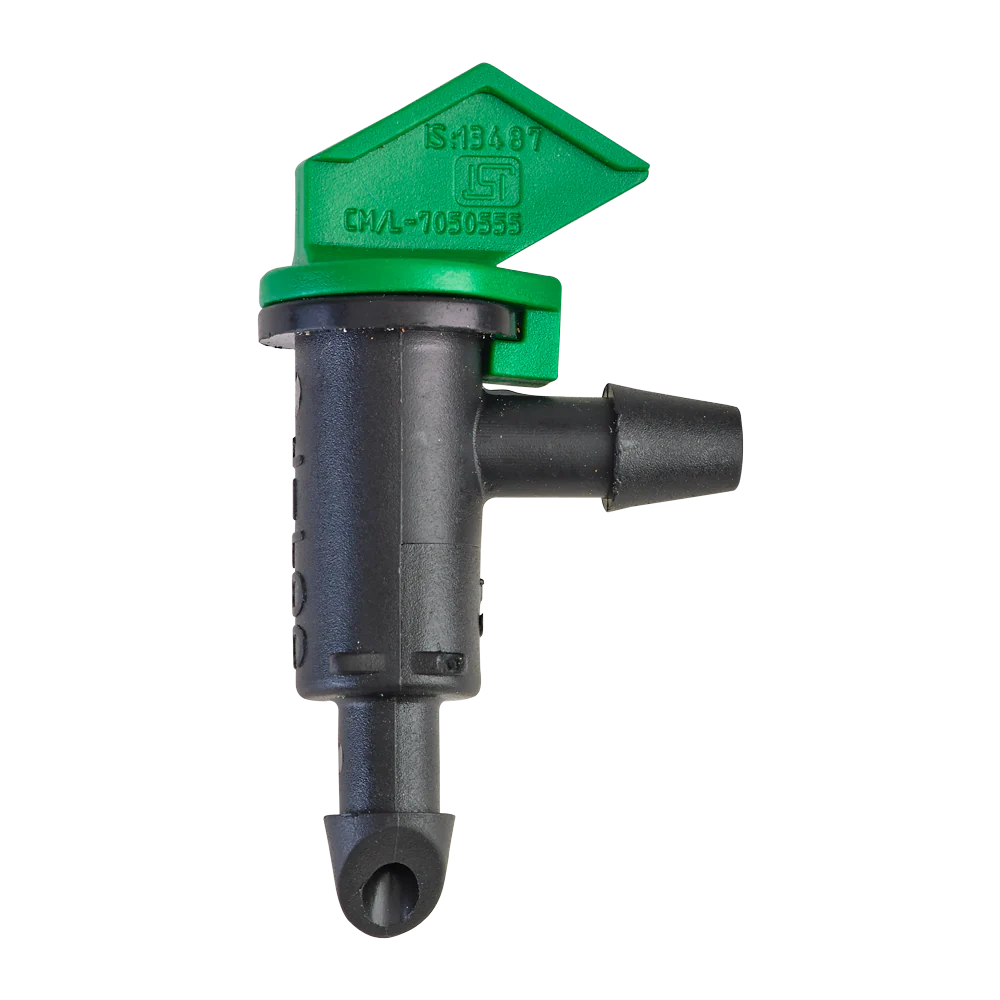

J-Loc® emitter

01.

J-Loc® emitter

Stringent Quality Checks : Each batch passes through
stringent quality tests to ensure efficient and trouble
free performance for long period. Conforming to Indian
Standard IS 13487 and International Standard ISO 9260.

Features

Simple Two Piece Take Apart
Construction :Two piece design facilitates ease
of maintenance.
Latching Insert : Strong latching arrangement helps
easy removal of flow path insert. Prevents snap-off under pressure fluctuations.
Facilitates Horizontal as well as
Vertical Installation of Emitter : Unique design allows to install emitter in any direction. Vertical installation used for nursery application near thesaplings/pots. Horizontal installation facilitates
easy retrieval of tubing and can be used for closely spaced crops.

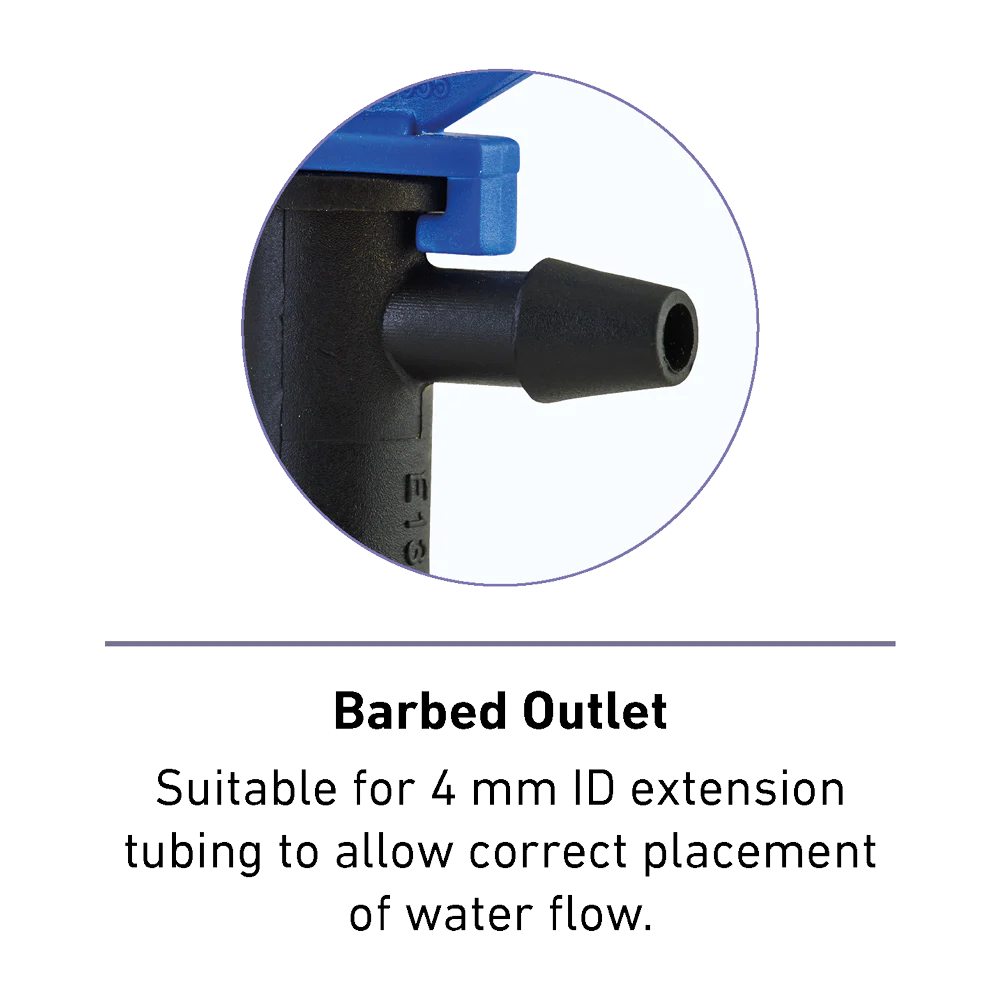

Barbed Outlet : Suitable for 4 mm ID extension tubing to allow correct placement of water flow.
No Environmental and Chemical Effects : UV stabilized does not have any environmental effects. Resistant to chemicals used in agriculture.
Color Coded Insert : Color coded insert facilitates easy identification of emitter flow rate.

Specification

Nominal operating pressure 1 kg/cm². Can be used for other pressure rating after consulting company representative and with due care for filtration.
Filtration recommendation 130 micron or less.
Actual quality of filtration can be decided by quality of source water.
Please refer to our “Maintenance Manual” for more details.

Application

Recommended for fruit orchards requiring multiple
drippers around the trunk of the tree, to cover widespread root zone.

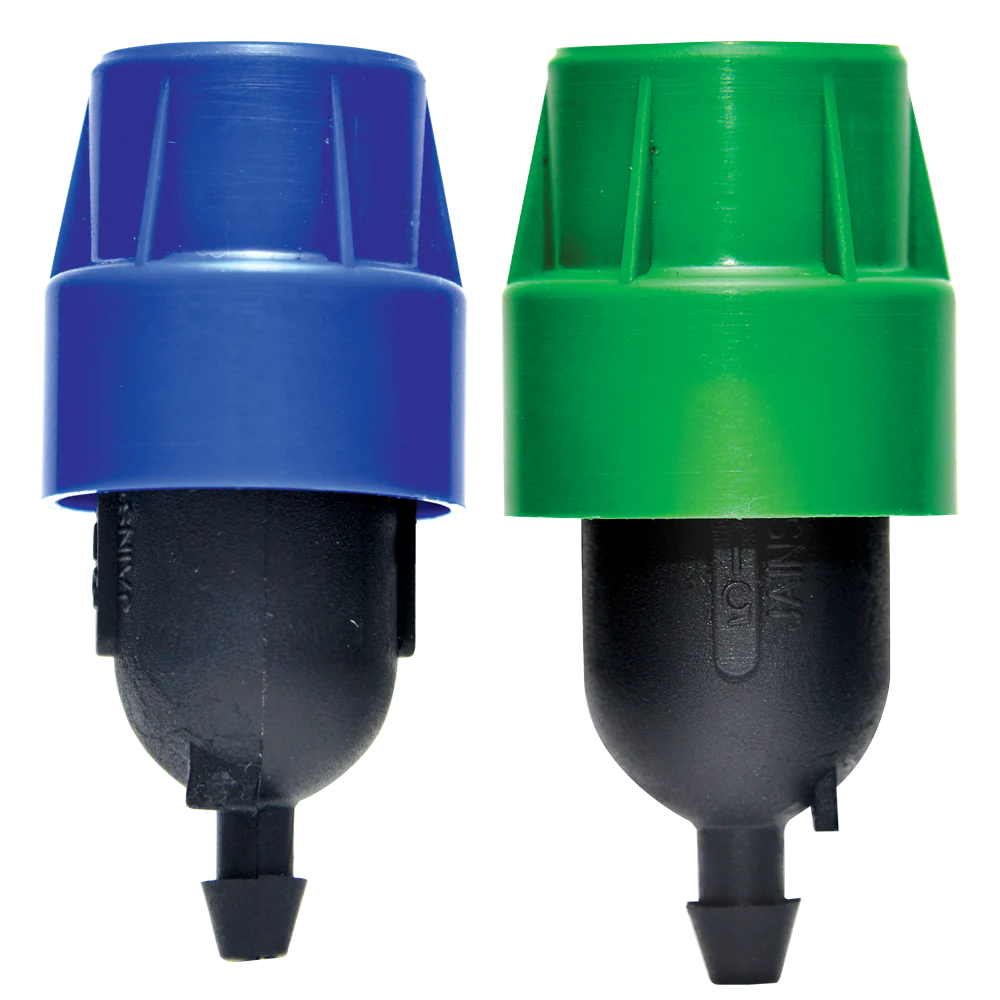

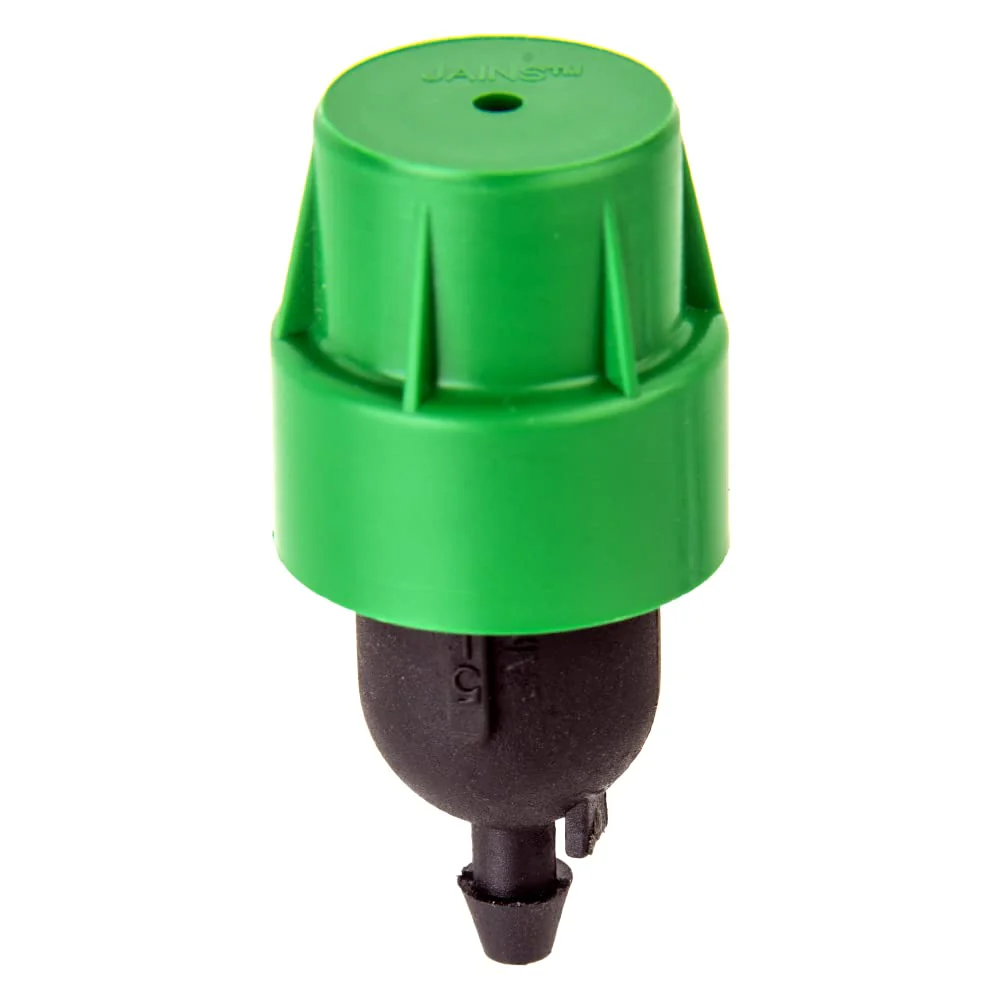

Vari Flow ™ Dripper

02.

Vari Flow ™ Dripper

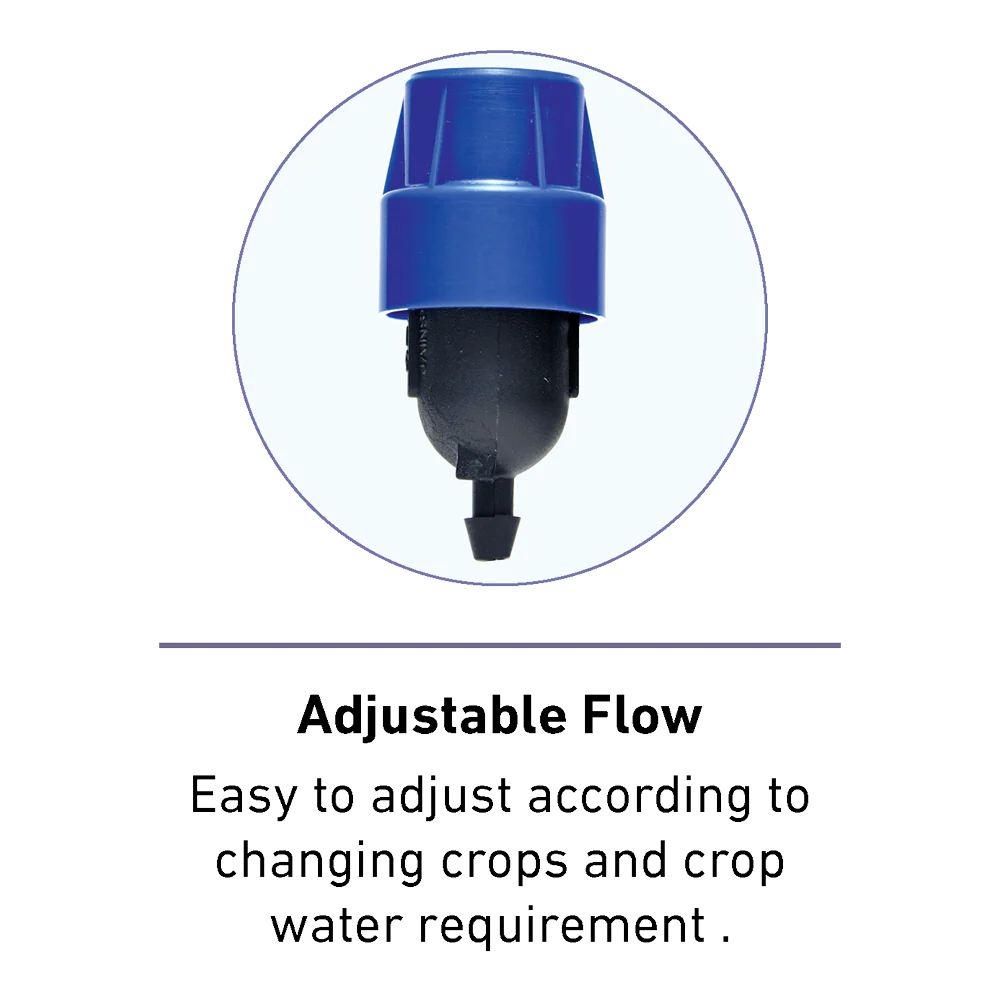

Adjustable Flow: Easy to adjust according to
changing crops and crop water requirement .

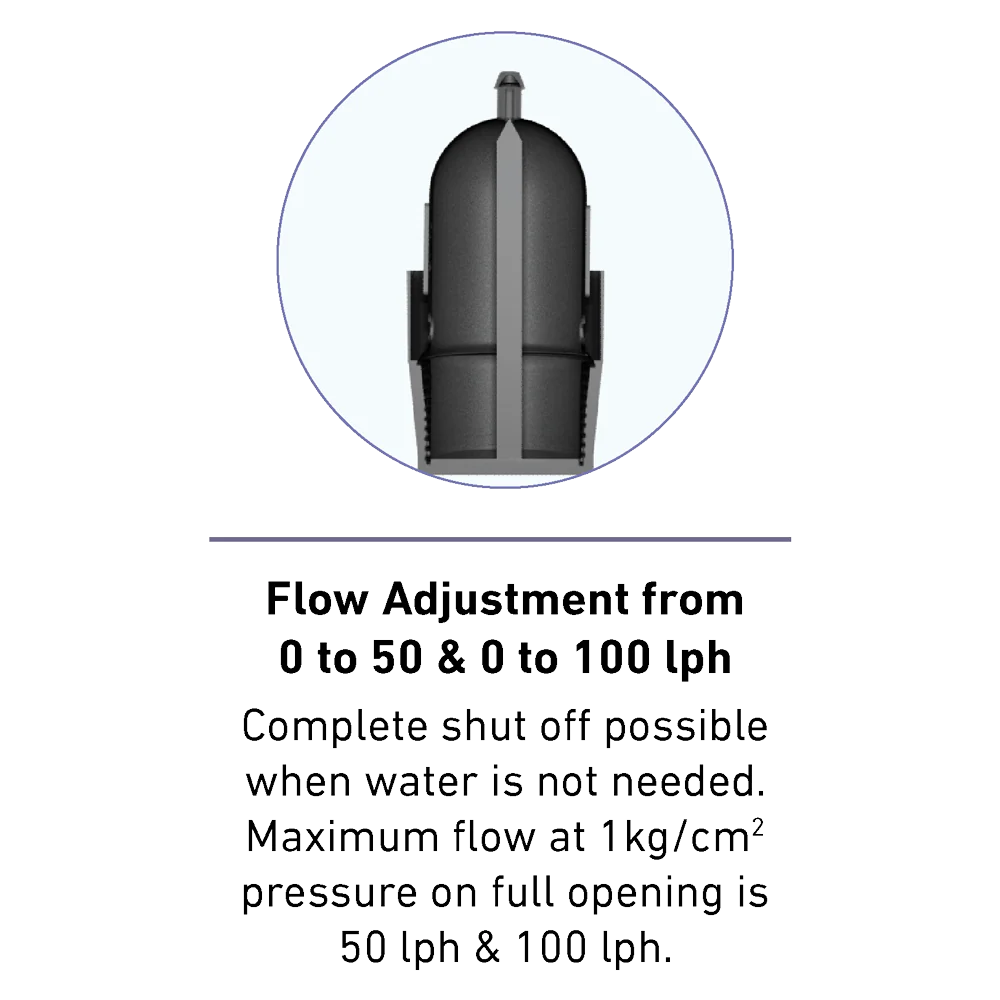

Flow Adjustment from 0 to 50 & 0 to 100 lph :
Complete shut off possible when water is not needed. Maximum flow at 1 kg/cm² pressure on full opening is 50 lph & 100 lph.

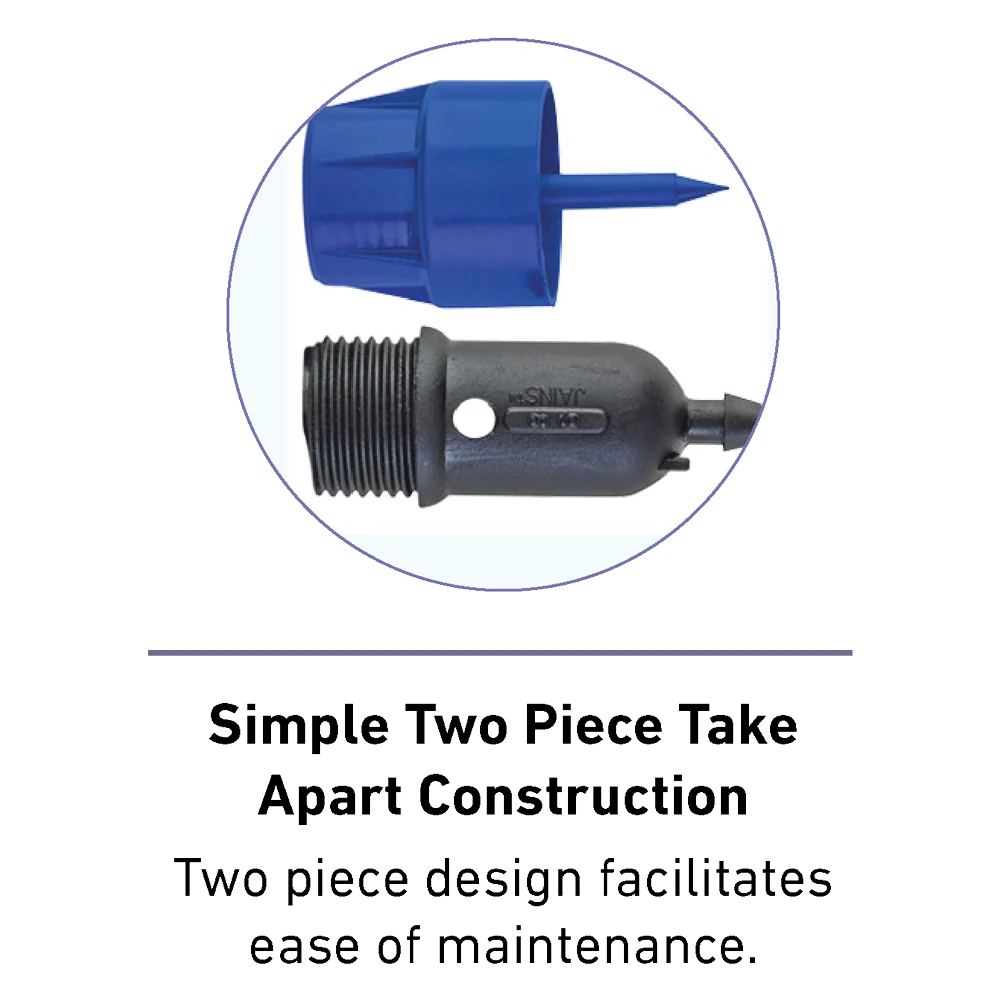

Simple Two Piece Take Apart Construction :
Two piece design facilitates ease of maintenance.
Protected Outlet : Protected outlet prevents
entrance of sand/soil in desert/sandy soil conditions.
