GENIE SERIES
100MM BOREWELL SUBMERSIBLE PUMPS GENIE SERIES
C.R.I. Genie 100 mm Borewell submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water.
The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering. All vital components of these pumps are made up of corrosive resistance thermoplastic and with stainless steel shaft.
- Motor portion covered with corrosive resistance Stainless steel (SS 304) shell
- More durability & hygiene
- High operating efficiency
- Specially designed thrustbearing to withstand high axial thrust load
- Extremely hardwearing water lubricated bearing
- Thread type motor construction ensures rigidity & service feasibility
| Power Range | 0.37 kW - 5.5 kW (0.5 HP - 7.5 HP) |
| Voltage Range | Single Phase 220V, Three Phase 380 - 400V, 50Hz, AC Supply |
| Maximum Total Head | 568 Metre |
| Maximum Flow Rate | 7 lps (25.20 m³/h) |
| Power Range | 0.37 kW - 5.5 kW (0.5 HP - 7.5 HP) |
| Voltage Range | Single Phase 220V, Three Phase 380 - 400V, 50Hz, AC Supply |
| Maximum Total Head | 568 Metre |
| Maximum Flow Rate | 7 lps (25.20 m³/h) |
Applications
SMART PUMPS

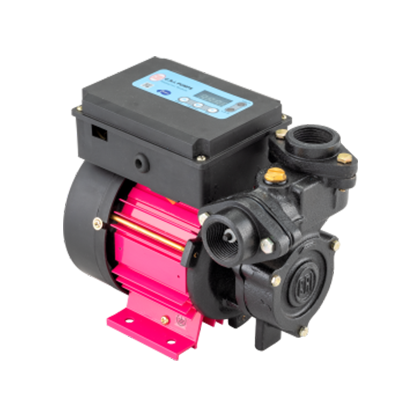

I-SMART PUMPS
C.R.I. is proudly introducing the new Intelligence Smart Mini Pump with complete solution of water pumping.
i-SMART pumps are specially designed for efficient and trouble free performance. The integrated system protects the pump from dry run operation, over load fault and sudden voltage variation. The pump controller unit equipped with inbuilt timer which helps to run the pump with real time run as well as scheduled time run, so it enhances the effective running and low power consumption of pumpset. The digital LED display supports to set the time and helps to monitor the voltage and current values.
Float switch sense the over head tank water level and runs the pump automatically.
- Efficient way of run ensures power savings
- In built timer with 24hrs real time settings
- Auto / manual
- Dry run prevention/ over load/ low & high voltage
- Available. sense automatically through float switch
- In built LED display
| Model Name | I-SMART |
| Power Range in HP/kW | 0.5HP and 1HP |
| Maximum Head | 40 Metre |
| Maximum Flow | 3150 LPH |
| Version | Single Phase 220 V, AC Supply |
| Pipe Size(S * D) | 25 * 25mm |
| Part Name | Material |
|---|---|
| Pump Casing | Cast Iron |
| Bracket & Rear Cover | Cast Iron |
| Motor Body | Aluminium Extruded |
| Rotor | Aluminium Die Cast |
| Motor Shaft | SS 410 |
| Impeller | High Tensile Brass |
Applications

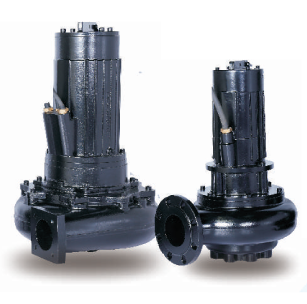

I TECH SERIES
SUBMERSIBLE SEWAGE PUMPS – I TECH SERIES
With an eye on the growing market for various types of pumps for different industrial applications, CRI has developed a wide range of rugged, reliable and efficient pumps for different applications.
The range is continuously growing with additions to the product portfolio at regular intervals. Industrial pumps from CRI find applications not only in handling water but different types of fluids in paper, process and pulp industries, paint, dyes and chemical industries, mining and metal manufacturing industries, food & beverage industries, textile industries, power industry, machine tool industry apart from general water supply. All the products can be customized to suit specific application and requirement and is backed by a dedicated State-of-the-Art Greenfield factory. All pumps are tested in a highly sophisticated PLC-SCADA based Test Bed complying with international standards.
- High head
- Hi hydraulic efficiency
- Minimized risk of clogging & minimum wear
- Wide free passage in single / multi channel impeller
- Double mechanical seal
- Bronze wear ring to maintain performance
- H07RNF cables
- Alloyed cast iron to increase resistance to wear
| Max. Flow | Upto 1800 m3/hr |
| Max. Head | Upto 65m |
| Max. Power | Upto 52kW |
| Max. Liquid Temp | Upto 90C |
| Degree of Protection | IP 68 |
| Motor Type | Dry (Rewindable) |
| Impeller | Vortex; Cutter; Single/Multi channel; Semi Open |
| Max. Free Passage | 165 mm |
Cast Iron FG260 WITH 0.3 CU 0.3 NI 0.3MO MIN
Applications

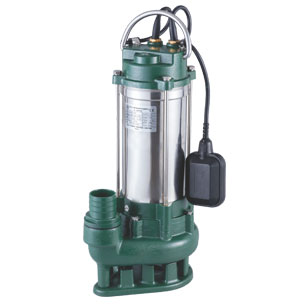

SMB / SP SERIES
SUBMERSIBLE SEWAGE PUMPS – SMB / SP SERIES
CRI surface waste water pumps work efficiently whether in waste water treatment, waste water disposal or flood control. They are built with high efficiency motors. The waste water pumps are equipped with heavy duty sealed bearings and an inbuilt seal that prevents ingress of silt and sand.
| Max. Flow | Upto 270 m3/hr |
| Max. Head | Upto 34m |
| Max. Power | Upto 18.5kW |
| Speed | Up to 2880 / 1440 rpm |
Applications

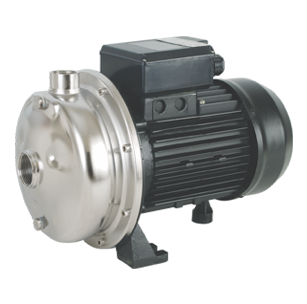

CTSS & JTS SERIES
CENTRIFUGAL MONOBLOCK SELFPRIMING PUMPS CTSS & JTS SERIES
C.R.I. S.S Centrifugal Monoblock / Self-Priming Jet pumps are carefully designed to give best hydraulic efficiency and suction lift characteristics. Most modern and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure long life.
Dynamically balanced rotor ensures vibration free and noise free operation. All single phase pumps are in-built with thermal overload protector to prevent overload. High operating efficiency of these pumps result in low power consumption.
- In-built thermal overload protector
- Hygienic pumping system
- Back pull-out design for easy servicing and repair
| CTSS | JTS | ||
|---|---|---|---|
| Power Range | 0.75 kW(1HP) | 0.37 kW - 0.75 kW (0.5HP - 1HP) | |
| Version | 1Ph - 220V/3Ph -380-415V,50Hz, AC | 1Ph - 220V /3Ph -380-415V,50Hz,AC | |
| Maximum Head | 23 metre | 40 metre | |
| Maximum Flow Rate | 2.5 lps (9m³/hr) | 1.04 lps (3.75m³/hr) | |
| Pump Casing | S.S 304 |
| Motor Frame | Aluminium |
| Impeller | S.S 304 |
| Shaft | S.S 304 |
| Shaft Sealing | Mechanical Seal ( Carbon & Ceramic) |
Applications
Pressure Booster Pumps
Pumps
C.R.I has five decades of expertise and experience in developing and manufacturing a wide range of pumpsets. From the typical surface pumps to deep well submersible pumps, from high pressure pumps to small booster pumps, from domestic usage pumps to large distribution and lift pumps, C.R.I is known for its quality products with its customers world wide.
Pressure Booster Pumps
A booster pump is recommended where there is a requirement to increase water pressure to a desired level and improve the water flow rate. Pressure Booster pumps are useful in applications where a single pump cannot discharge water at the desired pressure. They are mostly additionally installed to ensure that other pumps in the system do not cavitate.

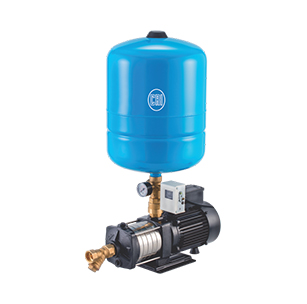

BRISK / MHBS

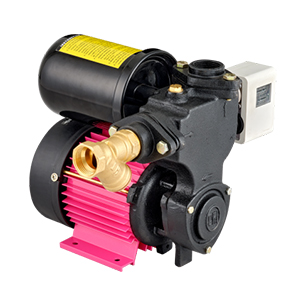

TINY FORCE

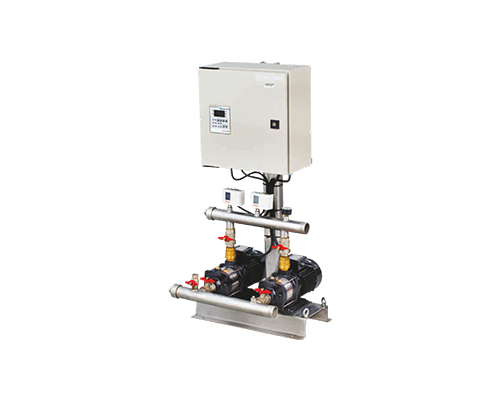

ISOBARIC SERIES

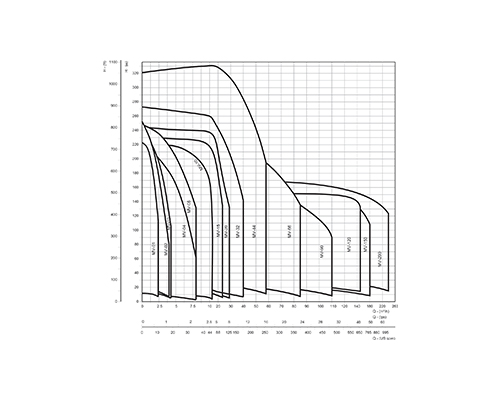

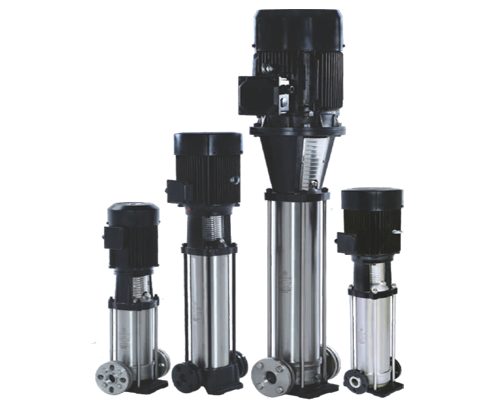

MV SERIES

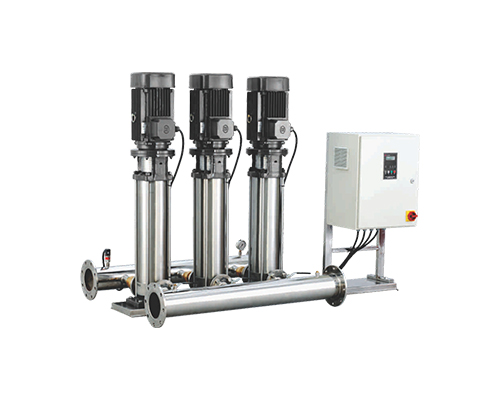

MVHS SERIES

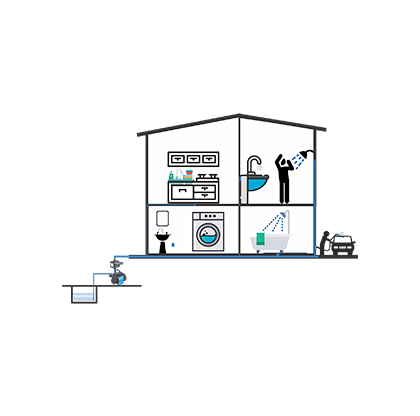

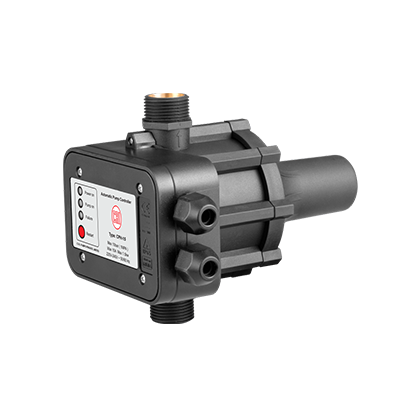

APC
How does a Pressure Booster Pump work?
Pressure Booster pumps work by adding an additional pump to the fluid flow system in order to increase water pressure. Therefore, these pumps work like any other ordinary pump.
Typically, these are centrifugal pumps that take water from a source and move it through an impeller (single-stage) or multiple impellers (multi-stage) to increase water pressure. The high-pressure water is then discharged through an outlet.

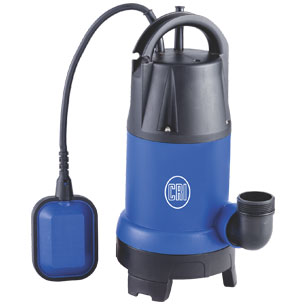

Waste Water Pumps
Waste Water Pumps
Waste water pumps are used in applications where there is a need to transport contaminated water comprising of organic, inorganic and mineral origins. Waste water pumps are submersible pumps. They are single phase pumps since the power requirements are low.
Benefits of a Waste Water Pump
- Waster water pumps require a small footprint
- Their working principles are simple, and they can be easily installed
- Suspended matter in sewage can be transported without getting clogged
- Waste water pumps have a longer lifespan

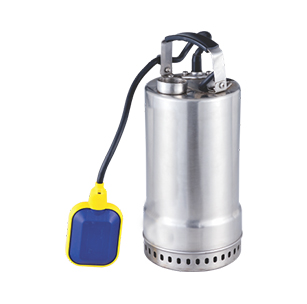

MS & MP SERIES

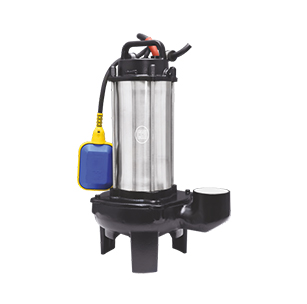

DL , SL & SLC – SERIES
Features of CRI Waste Water Pumps
C.R.I. has introduced highly efficient and reliable sewage & drainage pumps in a comprehensive range. Besides expanding its product portfolio, C.R.I. is firmly committed to contributing a vital role in creating more pleasant and affluent living conditions worldwide, which is one of its ambitious goals. These pumps are available with different materials of construction and feature a multitude of applications in wastewater handling and treatment.
A submersible sewage pump from CRI offers features that support efficient waste handling. A sewage pump is a single-phase pump since power requirements are lower. Sewage pumps from CRI have impellers that are non-clog type and they allow solids up to 40mm diameter. They help in the free flow of solids. A cutter range is used in the design that handles fibrous solids effectively.
