GENIE SERIES

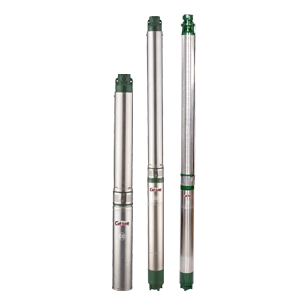

100MM BOREWELL SUBMERSIBLE PUMPS GENIE SERIES
C.R.I. Genie 100 mm Borewell submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water.
The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering. All vital components of these pumps are made up of corrosive resistance thermoplastic and with stainless steel shaft.
- Motor portion covered with corrosive resistance Stainless steel (SS 304) shell
- More durability & hygiene
- High operating efficiency
- Specially designed thrustbearing to withstand high axial thrust load
- Extremely hardwearing water lubricated bearing
- Thread type motor construction ensures rigidity & service feasibility
| Power Range | 0.37 kW - 5.5 kW (0.5 HP - 7.5 HP) |
| Voltage Range | Single Phase 220V, Three Phase 380 - 400V, 50Hz, AC Supply |
| Maximum Total Head | 568 Metre |
| Maximum Flow Rate | 7 lps (25.20 m³/h) |
| Power Range | 0.37 kW - 5.5 kW (0.5 HP - 7.5 HP) |
| Voltage Range | Single Phase 220V, Three Phase 380 - 400V, 50Hz, AC Supply |
| Maximum Total Head | 568 Metre |
| Maximum Flow Rate | 7 lps (25.20 m³/h) |
STEELIX SERIES

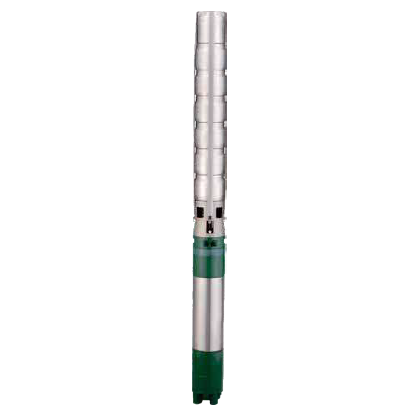

100MM BOREWELL SUBMERSIBLE PUMPS STEELIX SERIES
C.R.I. Stainless Steel – Steelix Series 100mm & 150mm Borewell Submersible pumps are made of corrosion resistance stainless steel with built in check valve.
All vital components of these pump models are made of high quality 304/316 grade stainless steel and the shaft is of SS 304/329/431. The Optimal design of impellers and diffusers enables the best possible hydraulic efficiency.
- Pump components are made up of corrosive resistant SS 304/SS 316
- Motor portion covered with corrosive resistance stainless steel SS 304/SS 316 shell
- Best suitable for saline water and industrial applications
- High operating efficiency
- More longevity & hygiene
- Additional intermediate bearing on higher stage pump to ensure the deflection free rotation of pump.
| Power Range | 0.37 kW – 7.5 kW (0.5 HP - 10 HP) |
| Voltage range | Single Phase 230V; Three Phase 380-415V; 50Hz, AC Supply |
| Maximum Total Head | 535 metre |
| Maximum Flow Rate | 5 lps (18 m³/hr) |
| Power Range | 2.2 kW – 26 kW (3 HP - 35 HP) |
| Voltage Range | Single Phase 200-240V; Three Phase 380-415V; 50Hz, AC Supply |
| Maximum Total Head | 566 metre |
| Maximum Flow Rate | 22.22 lps (80 m³/hr) |
| Part Name | Material |
|---|---|
| Diffuser Chamber | Cast Iron |
| Impeller | SS 304 |
| Pump Shaft | SS 431/SS 304 |
| Motor Base | Cast Iron |
| Shaft | SS 410/431 with EN-9 |
Applications
